Seat Single DIN car stereo upgrade fitting kit (Steering wheel controls)

Complete stereo upgrade fitting kit to install a Single DIN aftermarket car stereo and retain the use of the original steering wheel controls in various Seat car models.

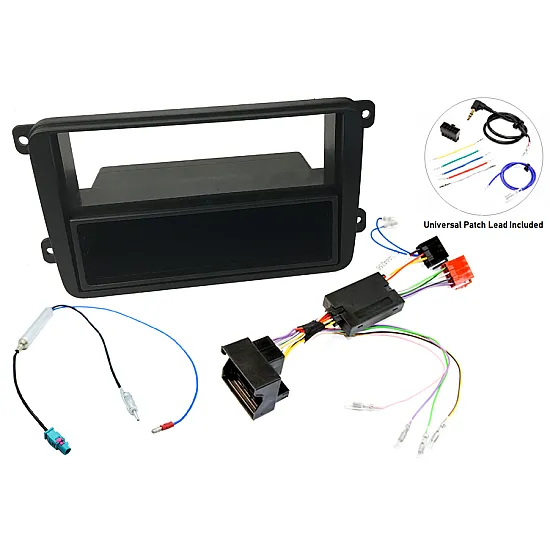

This head unit fitting kit includes:

• Double Fakra to DIN aerial adapter (Phantom Power) with Bullet connector (21-139K)
• Radio replacement steering wheel adapter interface (49-VW-01)
• Universal SWC Patch Lead (49-025)
• Single DIN fascia adapter with removable pocket (50-172)

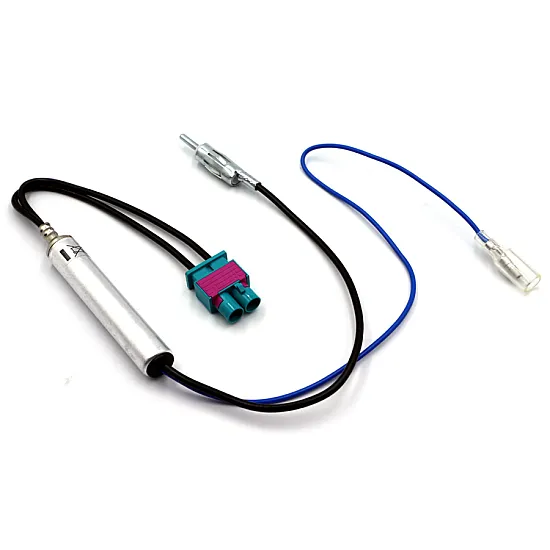

Double Fakra to DIN aerial adapter (Phantom Power) with Bullet connector (21-139K)

Double Fakra to DIN antenna adapter cable with 12v phantom power from a male bullet connection. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

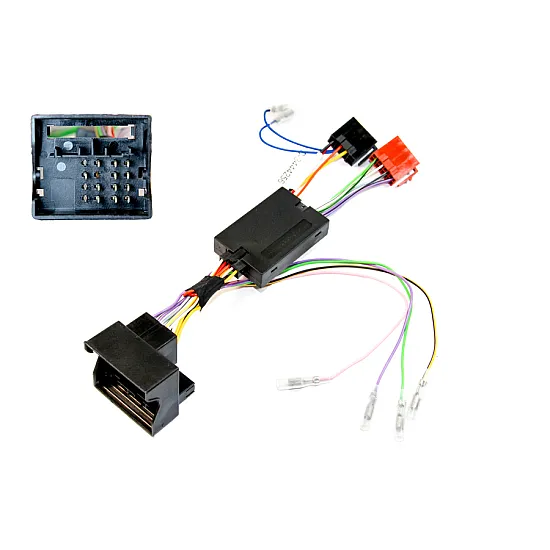

Radio replacement steering wheel adapter interface (49-VW-01)

The CANbus interface and radio adapter cable is plug and play, it is used to connect an aftermarket stereo upgrade and retain the use of the volume, track skip, source, mute and phone buttons from the steering wheel with the new radio. The CANbus interface will also provide ignition, illumination, speed pulse, reverse gear and handbrake outputs signals to the new stereo.

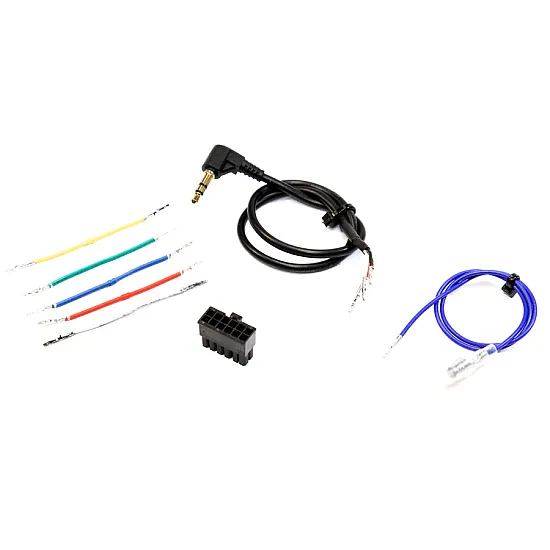

Universal SWC Patch Lead (49-025)

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

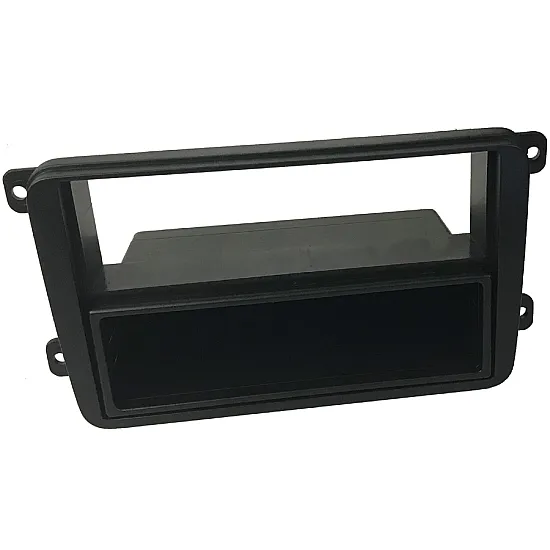

Double DIN flush fit fascia (50-172)

Car radio fascia adaptor panel to allow the fitting of an aftermarket Single DIN car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. This fascia kit includes a removable pocket. If fitting a double DIN radio the central bar needs to be cut out and a radio cage used.

Compatibility

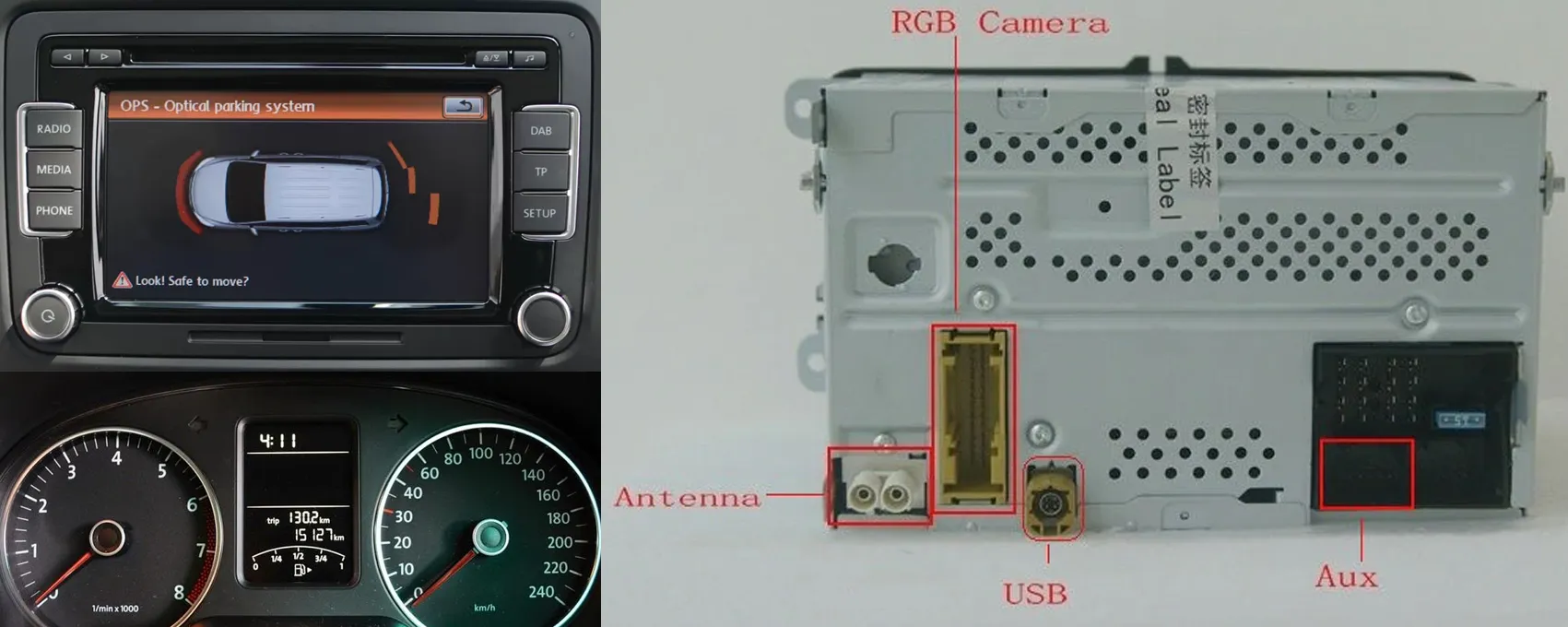

This fitting kit is compatible with Seat original head units fitted with a double Fakra connection, Please see pictures below.

• Please note that some vehicles have original DAB. This is not retained with this kit and will require 21-037 Fakra to SMB adapter.
• This kit also does not retain original reverse cameras or USB and AUX ports. Please see the other items listed against your car and original head unit to see if these are available as they vary by model and originally fitted radio.
• Not suitable for original amplified systems (Dynaudio, Fender) Please use FK-172-SWC2-D for these models.
• This kit also fits various Seat and Seat cars.
• Suitable for Seat Superb cars with the original Columbus navigation radio.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
