SEAT (Highline/ Amplified) Single DIN car stereo upgrade fitting kit (Steering wheel controls)

Complete stereo upgrade fitting kit to install a Single DIN aftermarket car stereo head unit and retain use of the original steering wheel controls in select SEAT vehicle with Highline specification or a factory fit amplifier.

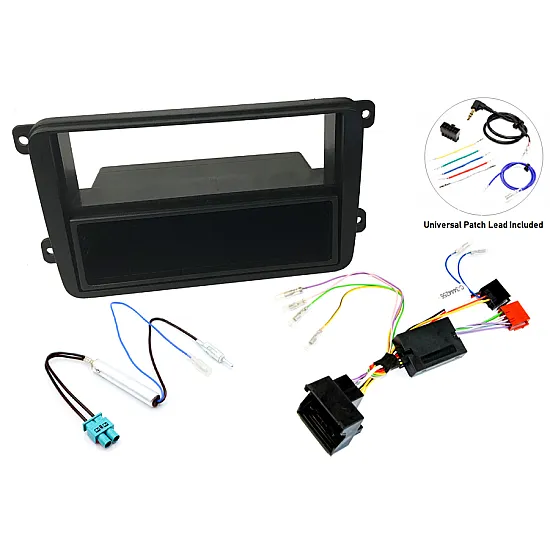

This head unit fitting kit includes:

• Double Fakra to DIN aerial adapter (Phantom Power) with Bullet connector (21-139K)
• Radio replacement steering wheel adapter interface (49-VW-02)
• Universal SWC Patch Lead (49-025)
• Single DIN fascia adapter with removable pocket (50-172)

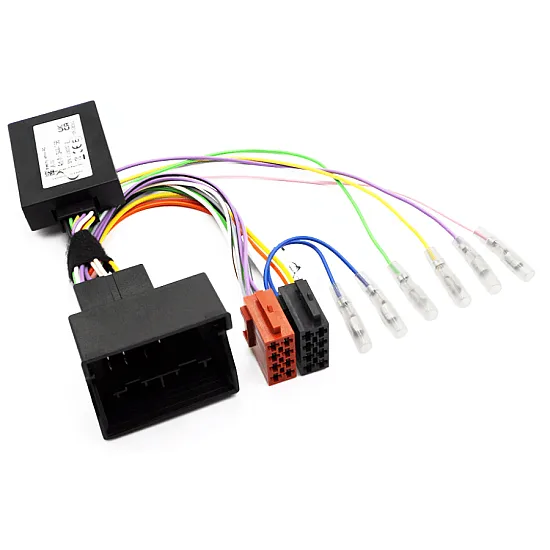

Steering wheel control, PDC and climate interface (49-VW-02)

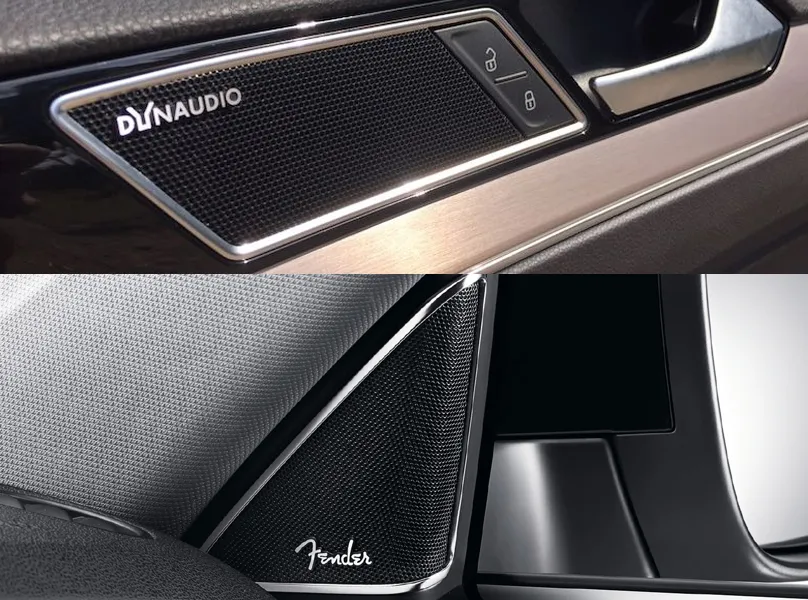

Provides CANbus ignition to the new radio and CANbus speed pulse, reverse gear and handbrake outputs. The interface also provides a CAN amplifier turn on signal for cars fitted with the original Dynaudio and select Fender sound systems. (These systems can be identified by the branding on the speaker grilles, pictured below)

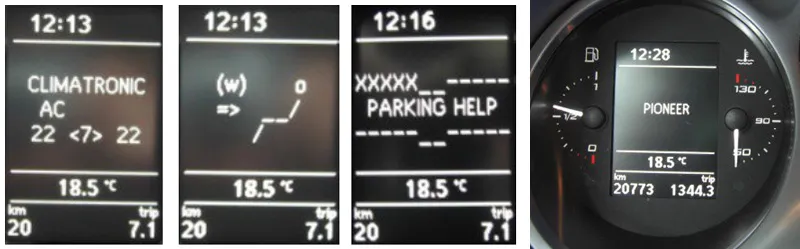

This interface also retains the original parking sensor display, (Parking Distance Control - PDC) and climate control information that is shown on the original radio. IF AVAILABLE ON THE VEHICLE. This information is transferred to the white display on the instrument cluster.

Please note: The PDC and climate info is shown on the cars central display between the clocks, NOT ON THE NEW RADIO

See the example images below for how the information is displayed and the white display which is compatible.

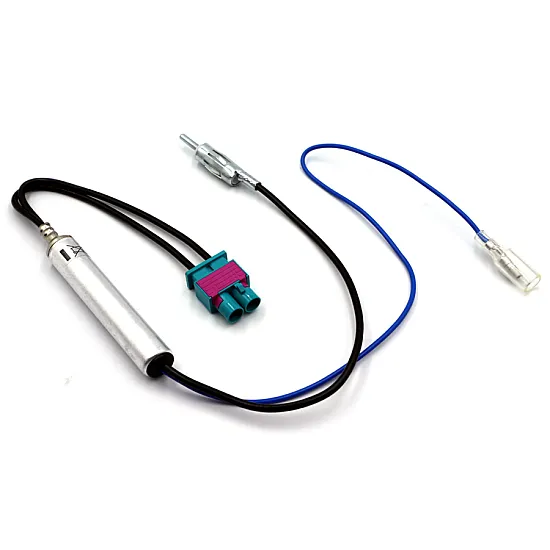

Double Fakra to DIN aerial adapter (Phantom Power) with Bullet connector (21-139K)

Double Fakra to DIN antenna adapter cable with 12v phantom power from a male bullet connection. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

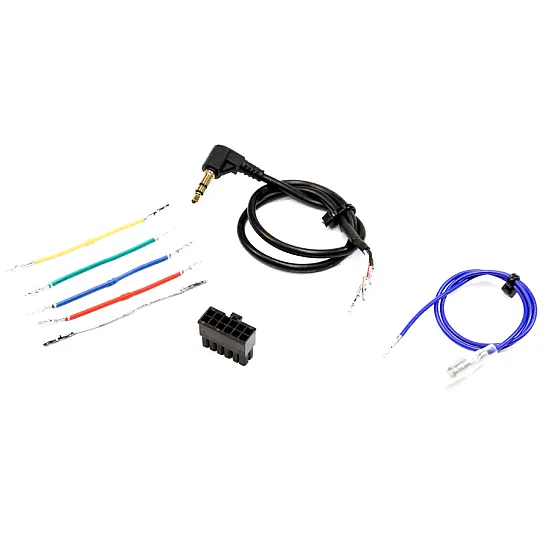

Universal SWC Patch Lead (49-025)

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

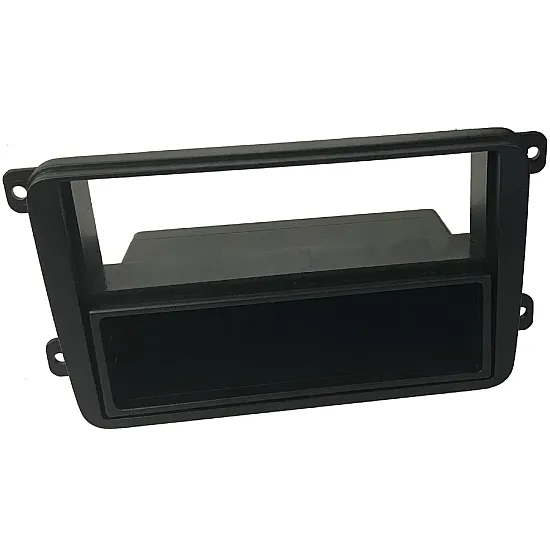

Single DIN flush fit fascia (50-172)

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. This fascia kit comes with a removable pocket. For double DIN installations the central bar will need to be cut out and a radio cage used.

Compatibility

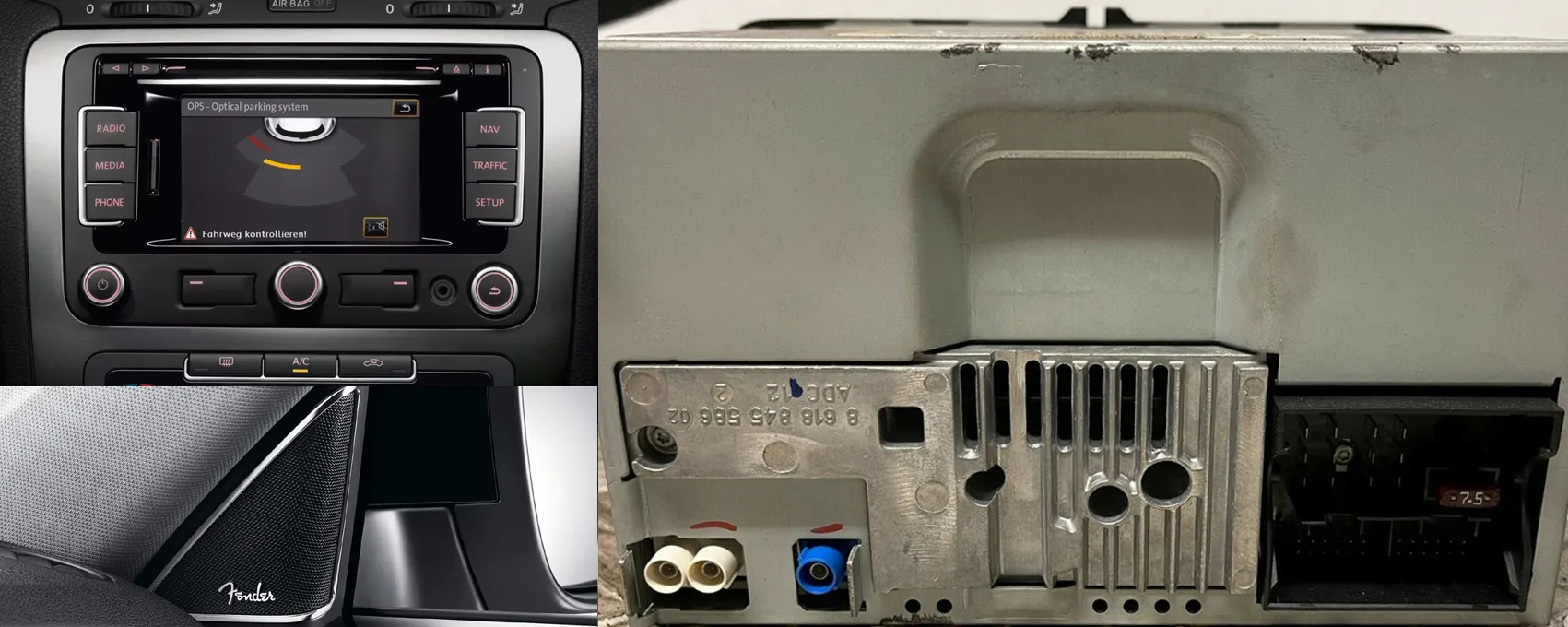

This fitting kit is compatible with SEAT original head units fitted with a twin Fakra connection and an amplified sound system. Please see pictures below.

• Please note that some vehicles have original DAB. This is not retained with this kit and will require 21-037 Fakra to SMB adapter.
• This kit also does not retain original reverse cameras or USB and AUX ports. Please see the other items listed against your car and original head unit to see if these are available as they vary by model and originally fitted radio.
• Not suitable for later (2017 onwards) Composition or Discover systems.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
