THINKWARE Dash Cam U1000 4K Ultra HD 2CH Front and Rear Camera Solution
- Brand: Thinkware
- Product Code: U1000 2CH
- 2 Years Warranty
- Easy Returns
Recommended Add Ons
SD Memory card is optional extra, please select.
To find out of the size of the memory card that is included in this package, please look in the description.
Optional Installation Package
You are being offered an installation at an additional cost. If you select the installation option then this product will be professionally Installed at your home or workplace anywhere in the UK by our own network of accredited engineers. You will be contacted by a member of our installation booking team after you have placed an order.
THINKWARE DASH CAM U1000 4K Ultra HD
- 4K UHD – 2K QHD 2-Channel
- Energy Saving 2.0
- Super Night Vision 2.0
- THINKWARE CLOUD 2.0 Beta
- Time Lapse
- Safety Camera Alert
- Road Safety Warning System (LDWS, FCWS, uFCWS, FVDW)

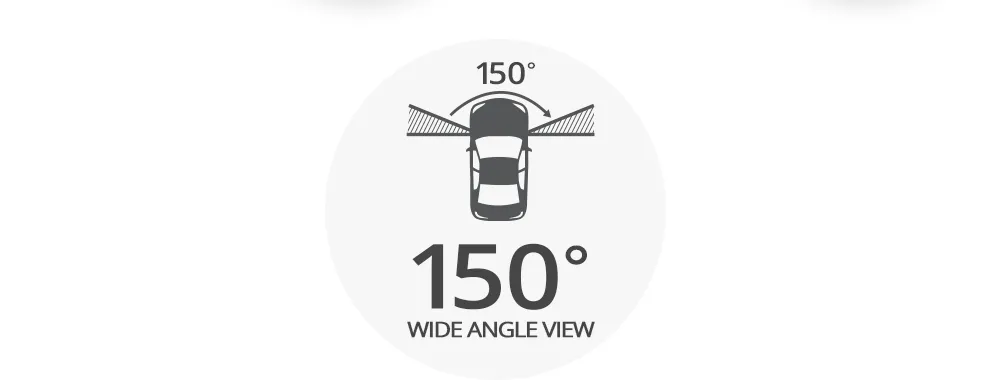

- 150º-156º Wide Viewing Angle
- Advanced Video Clear Technology
- Built-in Wi-Fi
- Built-in GPS
- Format Free 2.0
- Mobile APP (Android/iOS)
- Windows/Mac Viewer

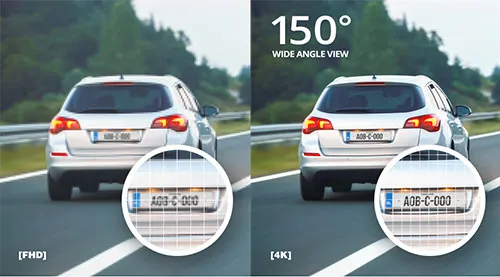

ULTRA HD 4K RESOLUTION
With 4x more pixels than Full HD, and 150º wide viewing angle, Now you can have every little details on the road.

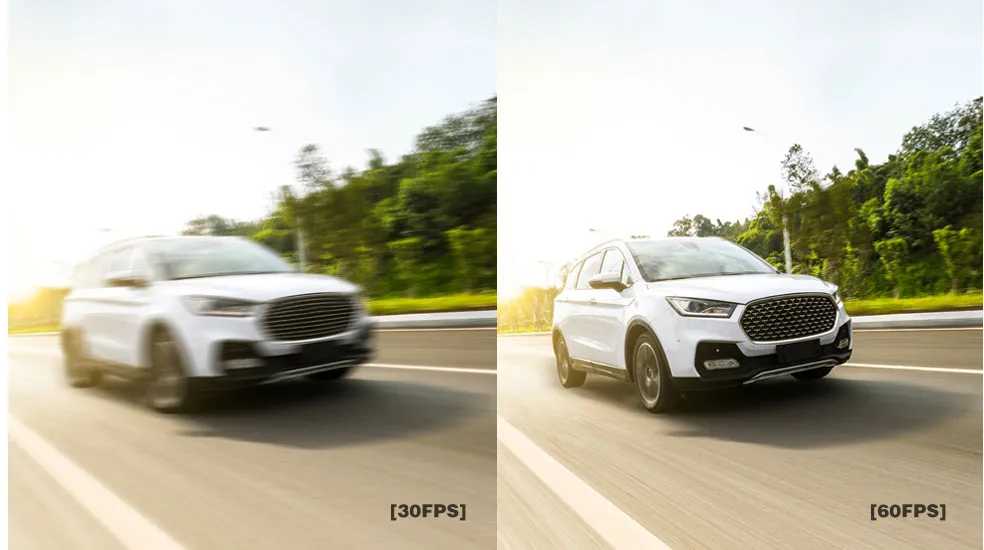

DYNAMIC 2K AT 60FPS
U1000 also supports 2K QHD recording at 60 frames per second.High frame rate delivers both smoother and sharper image

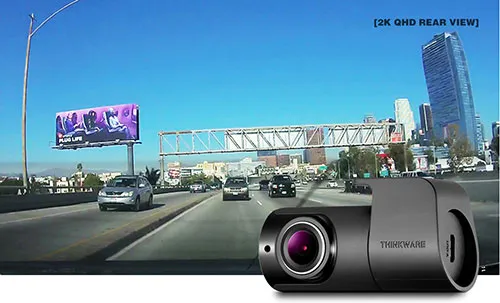

156º 2K QHD REAR VIEW RECORDING
According to NHTSA data, a rear-end collision takes up to nearly 1/3 of all crashes. With 156 degree wide viewing angle, you can be protected against accident denials.
THE REVOLUTIONARY NEXT GENERATION PARKING MODE ENERGY SAVING 2.0
The Energy Saving 2.0 is a revolutionary development of parking mode. With greatly reduced amount of electricity consumption, the dash cam will be at a standby up to 24 days / 576 hours Once an impact is detected, the dash cam will wake up within a second and record for next 20 seconds of period.

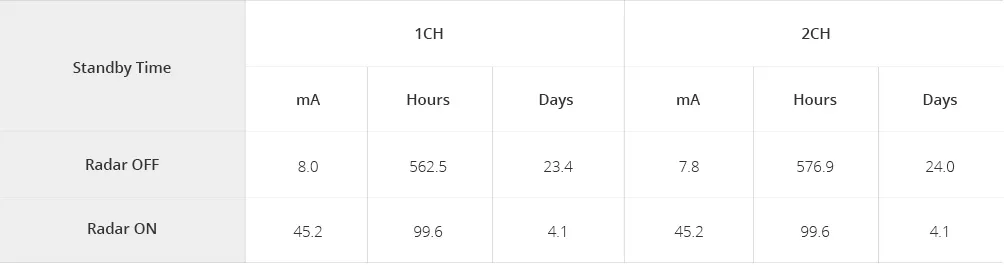

U1000 Energy Saving 2.0 Standby Time
Based on 4,500mAH battery (BAB-50)
* Variables: Temperature, efficiency of the battery by usage time, and change in current after a detection

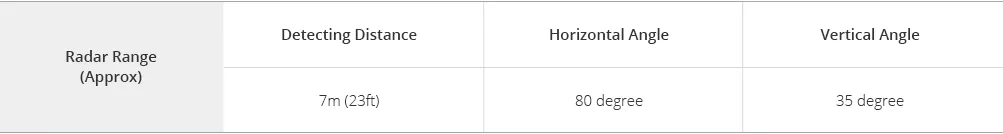

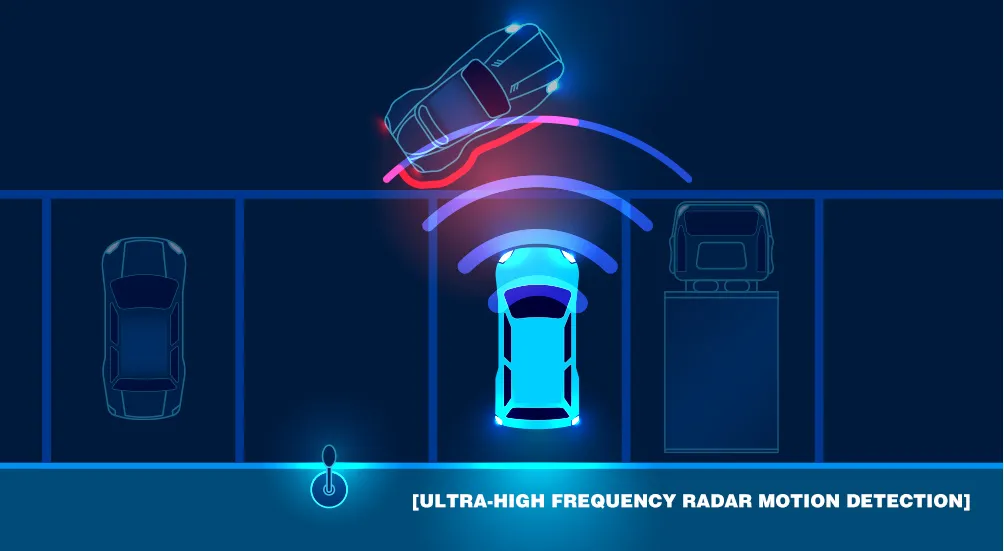

When the radar detects a moving object within the range, the dash cam will switch off the energy saving mode and ready for impact recording. If an impact has been detected within 30 seconds, the dash cam will save 20 seconds video of before and after the impact. If no impact is detected within next 30 seconds, the dash cam will automatically switched back to energy saving mode.
- Radar motion detection requires optional radar module, and only enabled in energy saving mode.
- Sedan or greater sized vehicle can be detected.
- Due to nature of Ultra-high Frequency radiation, the distance and degree of detection can be different.
- Not every object is guaranteed to be detected.
- Metal object can cause malfunction of the radar detection.
- Read user manual before using radar module

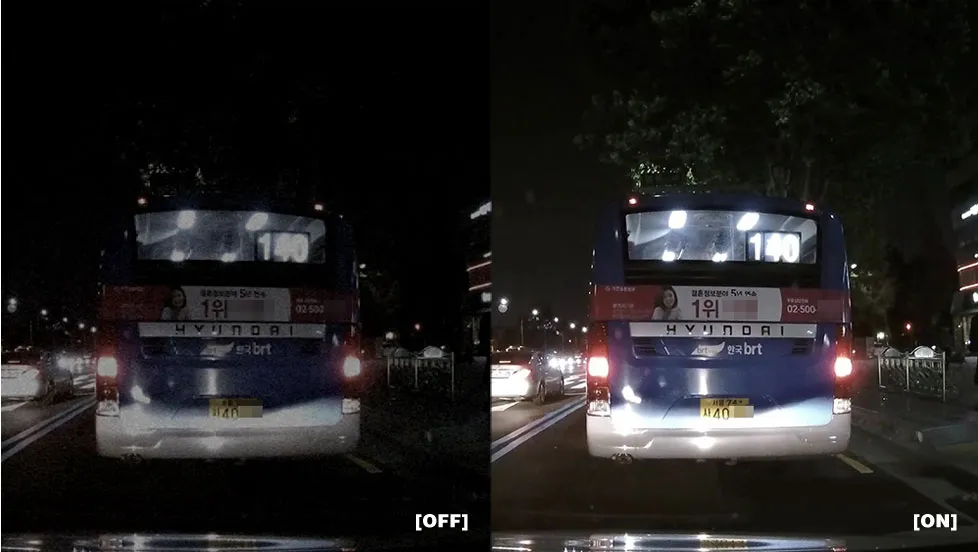

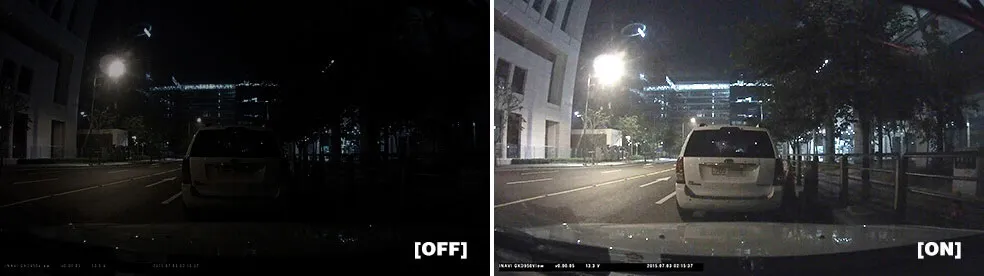

SUPER NIGHT VISION 2.0
DASH CAM videos recorded in a low-light environment, such as dark alleys or parking lots, may not be clearly identifiable. SUPER NIGHT VISION2.0 in the U1000 uses Image Signal Processing (ISP) technology to record a clear, visible video in any situation- while driving or parked.
Comparison of Driving Recordings
Comparison of Parking Recordings
The best duo from SONY brings enhancement in low illuminated environments, combined with Thinkware’s state of the art image signal processing
Watch what is happening in real-time. Remotely monitor your vehicle on your mobile device.
Live View: Up to 300 minutes per month (Reset on every 1st day of the month)
THINKWARE CLOUD uses your smartphone’s data connection to send and receive notifications. Carrier charges may apply
Mobile Hotspot connectivity with a Data Plan will be required to use the THINKWARE CLOUD features.

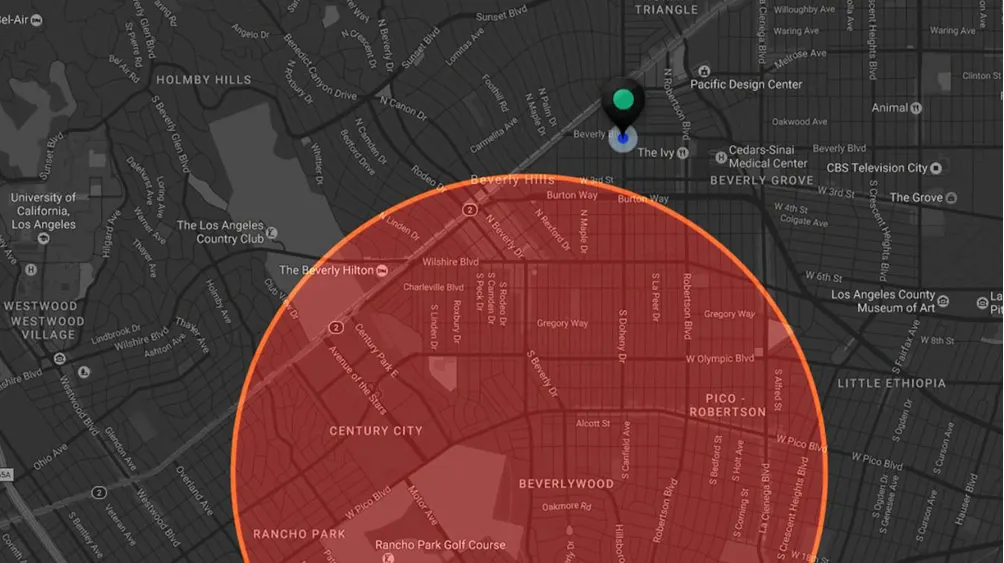

Geo Fencing allow drivers to stay alert of vehicle location. Whether your vehicle goes in/out side of a certain radical area, U1000 will send you push notification through mobile app, THINKWARE CLOUD. This is more practical for the parents, rental companies, and for fleet management. The radius can be set by typing the address or by using pin point on the mobile app. You may set 20 different radical area with the size from 100m up to 600km.
Locate Vehicle will help drivers to find the vehicle’s current location. U1000 will update its current location in every 10 seconds. Then it will display current location with speed and the heading direction integrated on google map.

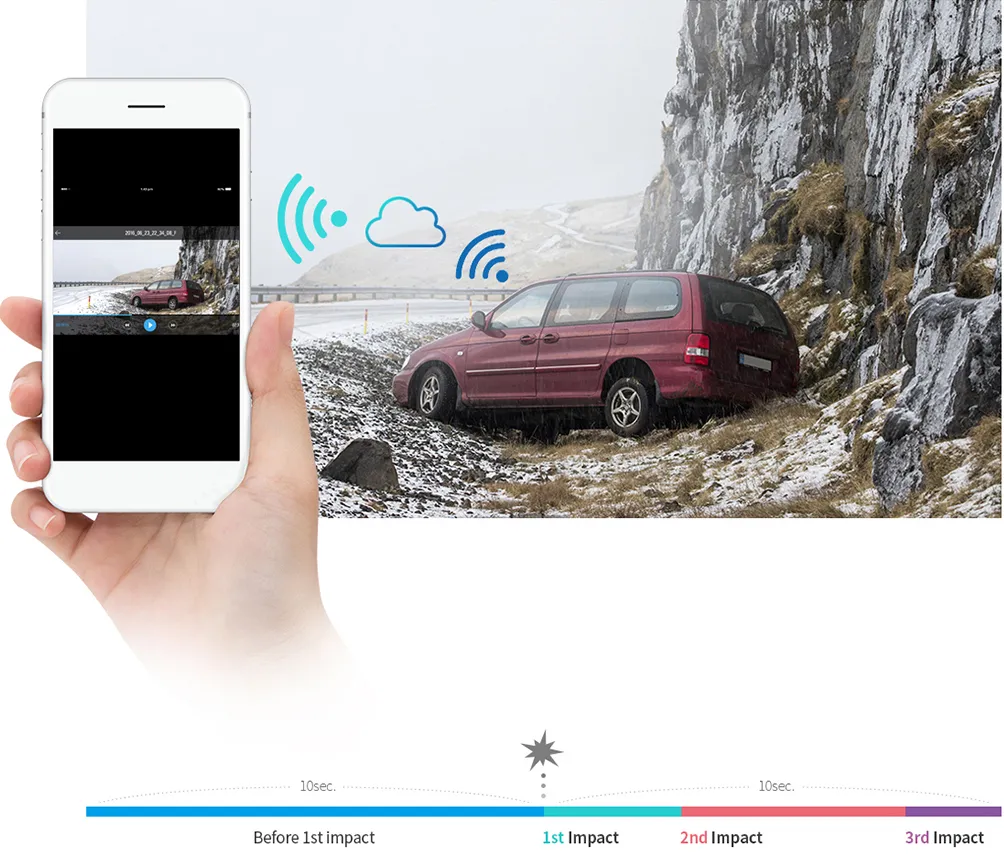

STRONG IMPACT NOTIFICATION
In the event of a crash, the alert feature can help the driver to notify others of an emergency situation when the driver is not in the condition to do so. The family or the owner of the car can then remotely check on the situation from their location.
When the car experiences an impact with a g-force level greater than 3g or 4g while driving, the dash cam will automatically send a push notification alert of the impact to the user’s smartphone logged in to the THINKWARE CLOUD app.
A 20 seconds video of the incident (10 seconds before and after the incident) is also saved on the THINKWARE CLOUD server, and a push notification alert of the video is sent to the user, which can be checked later and downloaded from the app.
- Strong Impact Notification Video: Up to 100 downloads per month (Reset on every 1st day of the month)
- No new videos can be recorded while saving the 20 seconds of first impact file.
- If a second or third impact is detected, an additional push notification alert of the impact is sent to the user’s smartphone.
- And if those impacts are within 10 seconds from the first impact, it can be seen in the remaining seconds of the first impact file
- (e.g. If, a second impact is detected 2 seconds from the first impact, 8 seconds are the duration of the second impact video).
- Capacity per user: 520MB – Strong impact videos of 66MB will be uploaded. (7 uploads for 1CH or 3 uploads for 2CH),
- When the capacity is exceeded: The oldest files are deleted and overwritten with the new videos.
- The service behavior and the transmission may vary depending on the server environment and your mobile data.
Important clips and images may get deleted due to insufficient memory space during long continuous recordings, especially in standard parking recording mode which requires large memory for saving 15 to 30 frames per second.
TIME LAPSE MODE in the U1000 records 2 frame per second reducing the size of the video file.
This allows video recordings in parking mode to continue up to 16 times longer than other dash cams. Parking recording mode can be activated upon installing the U1000 with the hardwiring cable provided.
SAFETY CAMERA ALERT
The THINKWARE DASH CAM U1000’s internal GPS provides accurate location information while the Safety Camera Alert function is on continuous alert to warn the driver of red lights and traffic enforcement cameras. Cultivate safe driving habits with THINKWARE DASH CAM.
|RED LIGHT |
|SPEED CAMERA |
|RED LIGHT & SPEED CAMERA |
|AVERAGE SPEED |
|MOBILE ZONE |
ROAD SAFETY WARNING SYSTEM
The THINKWARE DASH CAM U1000 is equipped with the Lane Departure Warning System (LDWS), Front Collision Warning System (FCWS), Urban Front Collision Warning System(uFCWS) and Front Vehicle Departure Warning (FVDW) to ensure driver safety with a voice warning.
Lane Departure Warning System (LDWS)
Drowsy or distracted driving greatly increases the chance of an accident on the road. The Lane Departure Warning System will alert the driver when the vehicle goes off lane in a speed over 50 km/h.
High Speed / Urban Forward Collision Warning System (FCWS/ uFCWS)
Accidents can be avoided by maintaining a safe following distance. Road Safety Warning System in the U1000 calculates the real-time distance between your vehicle and the vehicle in front of you, while driving above 30 km/h in expressways or under 30 km/h in a busy city, and issues a 3-level early warning to the driver depending on the danger of collision.

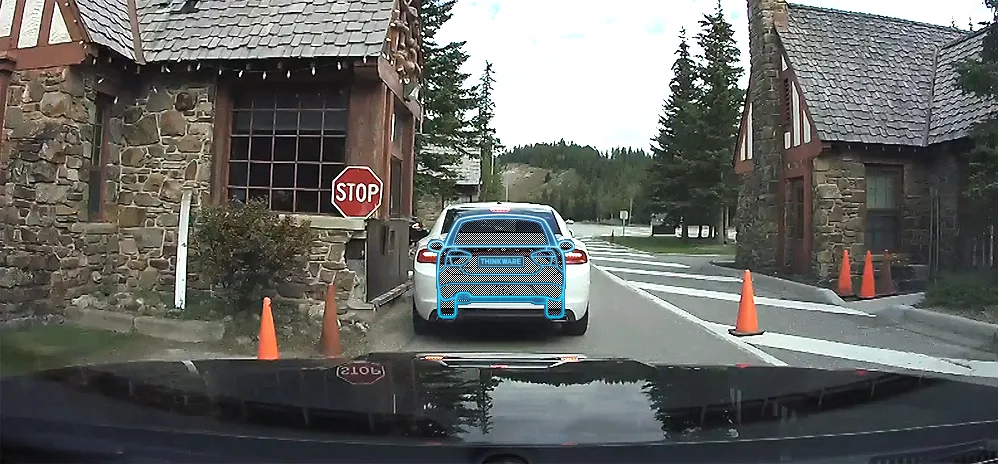

Front Vehicle Departure Warning (FVDW)
When your car is stopped at an intersection or in traffic, the intelligent guidance system informs you that the vehicle in front has started to move, preventing a delayed response just in case you stop looking ahead.
STATE OF THE ART VIDEO ENHANCEMENT TECHNOLOGY
THINKWARE DASH CAMs are equipped with top-notch video enhancement technology on the market, ensuring the most vivid video recordings under any circumstance.

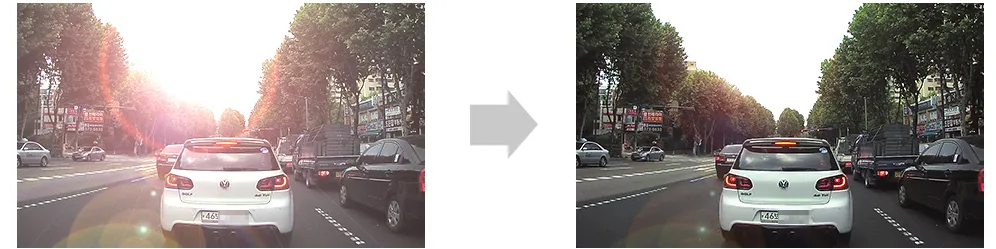

WIDE DYNAMIC RANGE
When you are driving under bright sunlight, coming out of a tunnel, or getting under the shadow of a tall building etc, a sudden change in frontal light exposure levels can result in excessively bright or dark recordings. The WDR function eliminates excessively bright spots on the recording to correct its color balance in order to ensure a clear image.

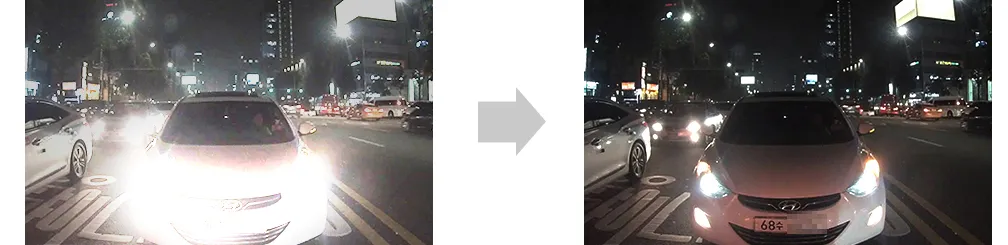

A sudden rise of light exposure caused by strong sunlight or headlight beams of oncoming vehicle may cause difficulties to assess the situation. Also, lack of lighting in a dark tunnel or night driving may pose the same problem. The automatic light exposure function controls the level of light exposure to maintain vivid and clear video recordings in all circumstances.
|Continuous Recording Mode |
This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
|Incident Recording Mode |
The Active Impact Monitoring System will automatically store the video data ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
|Manual Recording Mode |
Similar to a video camera, you can use the Manual Recording Mode to capture events that occur in front of your vehicle whether or not it is in motion.
|Energy Saving 2.0 |
The dash cam will go to sleep and soon after an impact has been detection by built-in G-senor, U1000 will wake up within a second and start recording for next 20 seconds of period.

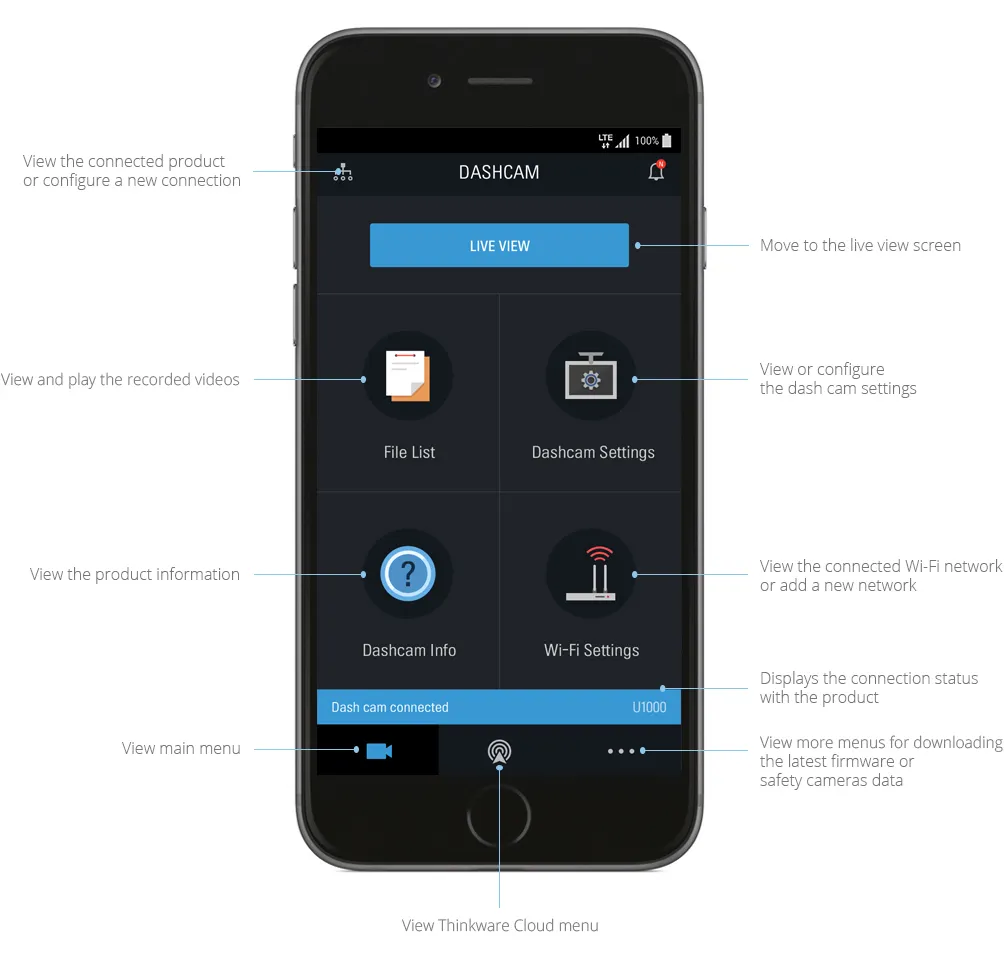

CHECK RECORDED IMAGES AND UPDATE FIRMWARE USING SMARTPHONES
Your smartphone and the U1000 can be connected via the exclusive application ‘THINKWARE DASH CAM Mobile Viewer for U1000’ with built-in Wi-Fi in the navigation. Check, download or delete recorded images, update firmware or update safe driving information on the application.

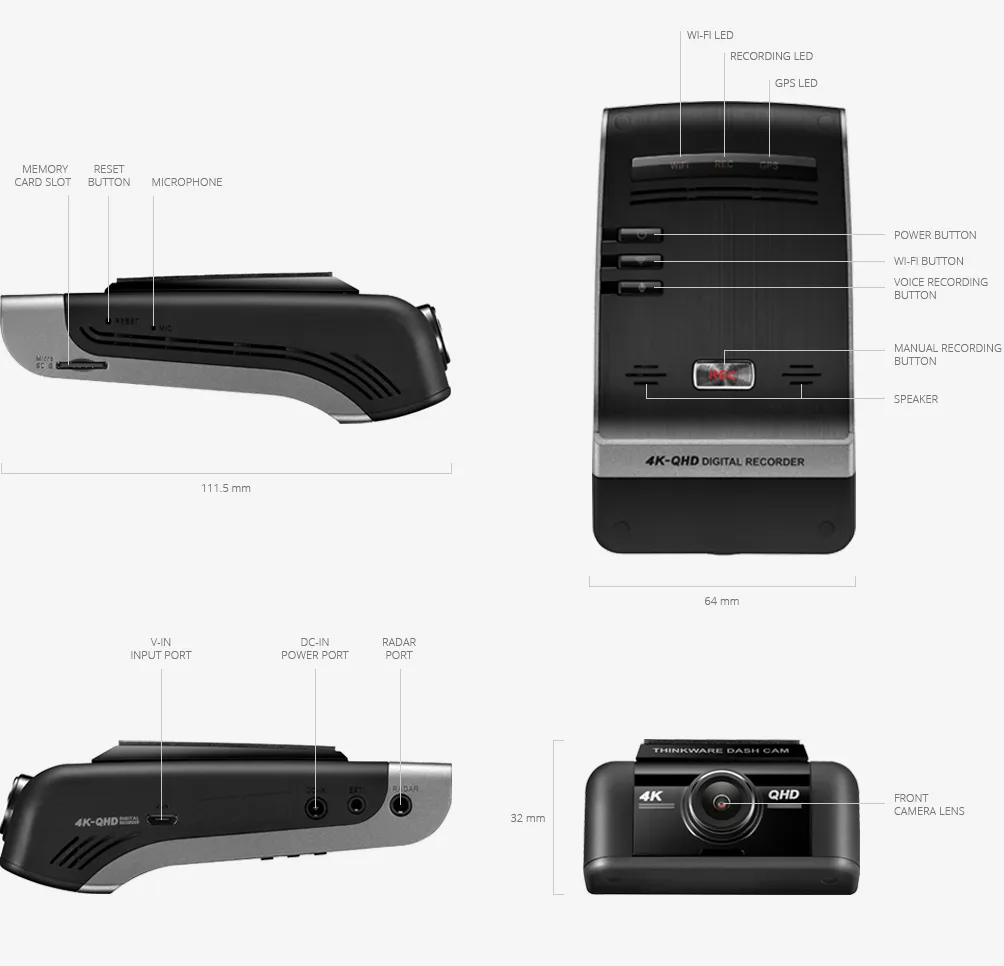

- Dimension 64 x 111.5 x 32 mm (2.5*4.4*1.2 inch)
- Weight 112g (0.25 lbs)
- Front Dash Camera
- Rear Dash Camera
- Mount with 3M tape (1ea)
- Hardwiring Cable
- Adhesive cable holder (3ea)
- 64GB MicroSD memory card with adapter (consumable)
- Quick Start Guide/Warranty Card
- Front: 8.42M Sony IMX 334 Exmor R STARVIS
- Rear(Optional): 5.14M Sony IMX335 Exmor R STARVIS
- Front: 4K UHD (3,840 x 2,160p) 30fps. / 2K QHD (2,560 x 1,440p) 60fps.
- Rear(Optional): 2K QHD(2,560 x 1,440p) 30fps
- Viewing Angel
- Front: 150º (Diagonal)
- Rear(Optional): 156º (Diagonal)
- Capacity Micro SD Card 32GB / 64GB / 128GB UHS-I
- Recording Modes Continuous Recording, Incident Recording, Manual Recording, Audio Recording, Evergy Saving
- Sensor 3-Axis Accelerometer G-Sensor (3D, ±3G)
- GPS Built-in GPS
- Wi-Fi Built-in Wi-Fi
- Power Input Power: DC 12/24V
- ETC Security LED / Operation Status LED/ GPS Receiver LED/ Wi-Fi LED
If you are unsure about the suitability of this product please contact us via the ask us about this item link at the top of this page or telephone us and we will gladly assist you.
No wire showing - if you would like to fit the camera so there are no lose or visible wires then you will have to purchase the hard wiring loom, which you can purchase by selecting it in the drop down 'Optional Hard Look Wiring' which is located at the top of the page.
Installation - If you would like to fit the camera with the hard wiring loom then we recommend you have your installation carried out by a qualified installer. If you wish Car Communications to carry out the installation at an address of your choice anywhere in the UK please select from addons above before adding to cart. During the checkout you will be asked your preferred date(s) and time for the installation.
|Product Type||Dash Camera|
|Dash Camera Spec|
|Dash Cam Features||2CH - Front with Rear Camera, Dash Camera, GPS, WiFi, Wide Angle Lens , Super Night Vision, 4K Ultra HD, Safety Camera Alert|
