VW Golf MK 7 (VII) Rear Camera Kit

VW Golf MK 7 (VII) Rear Camera Kit
-13 %

VW Golf MK 7 (VII) Rear Camera Kit

£349.00
£399.00
Ex Tax: £290.83
  • Stock Availability: In Stock
  • Item Condition : New
  • Model: VW-G75F-RVC
2 sold
  • 1 Year Warranty

Available Options

Rear View Camera Kit for Volkswagen Golf MK 7

An integrated high quality rear view camera kit, designed to work with your factory stereo system. An emblem camera that will give you guidelines just like the factory fitted reversing camera and with its factory style camera, the camera will only pop out the emblem when the car is put in reverse.

Golf 7 reversing camera screen



Bolt Camera

The high quality Sony lens with CMOS chip set, is drilled in just above the number plate which gives a discrete look, just like it has been factory fitted. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Camera Specifications

  • Guide lines (can be switched on)
  • Black aluminum case
  • Image mirrored (adjustable)
  • Image sensor type 1/4'' Color CMOS (PC7070)
  • NTSC video signal
  • Resolution pixels 648 488
  • DIN protection class IP67
  • 420 TV lines
  • Exposure 1 / 50-60 ~ 1/15000 seconds
  • Signal to Noise Ratio = 48db
  • Dynamics> 70db
  • Light sensitivity <0.2 lux
  • Output signal 1.0Vp-p, 75 OHM
  • Automatic white balance
  • Automatic video level adjustment
  • Operating voltage 6-24 volts DC
  • Power consumption 800mW
  • Working temperature -40° C to + 80° C
  • Diagonal viewing angle 170°
  • Horizontal viewing angle 140°
  • Camera structure dimensions 32x34mm and 25mm high
  • 7.5mm drill hole
  • CE certified

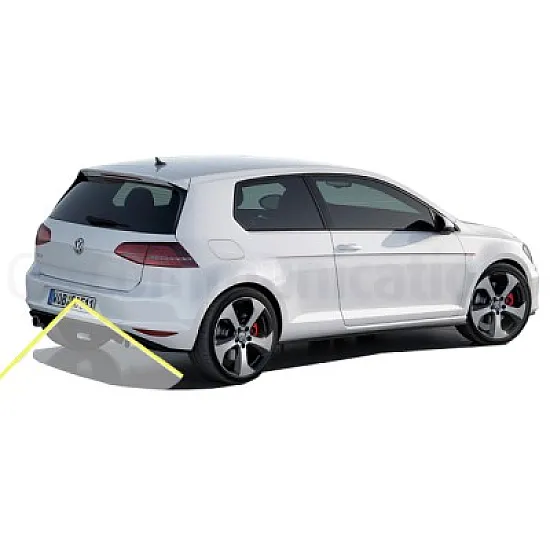

Golf with Bolt Camera



Optional Emblem Camera

Acts and looks like the factory fitted emblem camera, with high quality imagery. The emblem will flip the camera out when the car is put into reverse and flip it back in when the car is put into another gear.

(NOTE: you can select this camera in the recomended add ons above)

Golf 7 reversing rear view emblem camera

This kit has been specially designed for the Golf MK 7 and has been perfected to work fully integrated with the factory fitted stereo screen. Please do not be fooled by cheaper alternatives which claim to utilise the navigation screen. No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built into it.

Benefits of having a reverse camera in your VW Golf

  • Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
  • The driver can see any obstructions behind the vehicle during the reversing manoeuvre
  • The driver can see any any blindspots which are not visible to the driver
  • Greater vehicle safety management during reversing manoeuvres
  • Makes reversing much safer and more convenient

*Installation is optional via the dropdown

pdfRefer to the compatibility section to check your vehicle variant is supported.

All Images are for illustrative purposes only

Product Compatibility Chart

MakeModelVariationsYearsRadioNotes
VolkswagenGolf MK7, A7, Typ.5G (2012 - 2018)
2012 onward 5F in Glove Compartment
See Note Below
VolkswagenGolf MK7, A7, Typ.5G FL (2017 - 2020)
2012 onward 5F in Glove Compartment
See Note Below
VolkswagenGolf SV 4M1 (2014 > )
2012 onward 5F in Glove Compartment
See Note Below
Please Note -  Vehicle must have a 5F Module in the Glove Box

If you are unsure contact us with the vehicle VIN number and we will verify suitability.



Installation

Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your RVC Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.

For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.



RVC Spec
Reversing Camera FeaturesReversing Camera Kit, Flush Fit & Bolt On Camera
