Kenwood DMX5023DABS Car stereo System - Carplay - Android Auto
- Stock Availability: In Stock
- Item Condition : New
- Model: DMX5023DABS
- SKU: DMX5023DABS
- 1 Year Warranty
Available Options
With this kit you are able to add a reversing camera to help you maneuver through tight spaces while you're reversing and also parking.
![]() |
![]() | Internal windscreen DAB Antenna. Glass Mount DAB Aerial with adhesive and block Housing. Works best in a good to average digital signal strength area. The aerial is unsuitable for use on thermic metallic and heated windows. We recommend for optimum performance you purchase one of our external DAB aerials. |
- Description
- Vehicle Compatibility
- Installation
- Specifications
- User Manuals
- Reviews
- Product Related Question?
Audio and Video connectivity on the move with Apple Carplay, Android Auto and DAB+
Kenwood DMX5023DABS Car stereo System - Single & Double DIN
The Single DIN short chassis of the versatile and feature rich Kenwood DMX5023DABS car stereo system allows for easy installation.
Connect your smartphone via USB to mirror its display on the DMX5023DABS car stereo system. Operate your favourite Apple and Android applications with the DMX5023DABS's touch panel. Apple Carplay and Android Auto connectivity allows you to control your compatible applications directly from the large 6.8" High resolution touch screen. Stream your music content via Spotify or navigate to your destination using Waze or google maps navigation app, which feature live traffic updates and speed camera alerts. The Kenwood DMX5023DABS is a true in car audio multimedia system. Play your stored media, both audio and video, from USB storage devices (See file compatibility below) or stream directly from your smartphone via Bluetooth or USB cable. Take advantage of the DAB+ digital radio and listen to the crisp clear digital radio broadcast during your journey.
Please Note. A DAB antenna is required to receive DAB Digital radio transmission. This can be purchased from our Recommended Add-Ons section
Kenwood DMX5023DABS Features at a glance

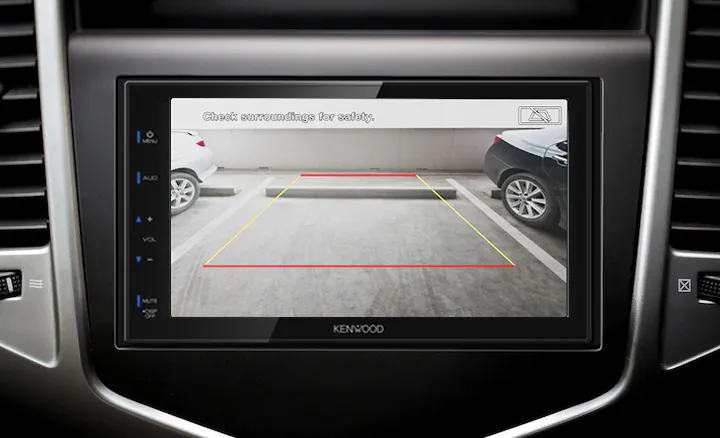

Reversing Camera Add On
Connect a rear view camera and view its feed through the screen, along with guidelines that help you back in safely. We also provide a nationwide installation service to give you that guaranteed peace of mind that your system will operate as intended. Optional camera / installation service purchases required, see recommended add-ons section above.
Key Features
- Wired Apple CarPlay® & Android Auto™ - Connect via USB
- Wired iPhone / Android USB Mirroring
- 6.8" WSVGA Display with Capacitive Touch Panel
- Built-in DAB+ Digital radio Tuner
- Built-in Bluetooth® Handsfree Calling & Audio Streaming
- High Current 2.1A Charging USB port.
- Front & Rear + Subwoofer (Mono) Pre-outs - 2.5V
- 13 Band EQ & Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Single DIN Short Chassis Design for easy installation
General Features
- DIN Size 2 DIN
- Smooth GUI Yes
- Selectable GUI Background Wallpaper Yes
- Key Illumination White colour
- Attenuator with Smooth Volume Return Yes
- Touch Sensor Tone Yes
- Optional IR remote controller Yes, (KNA-RCDV331)
- Digital Clock (24H) Yes
- Built-in Bluetooth Yes
- DAB Tuner Built-in Yes
- Made for iPhone Yes
- Works with Apple CarPlay Yes
- Works with Android Auto Yes
- USB Mirroring for iPhone / Android Yes
- Firmware upgradeable Yes
Monitor Features
- Screen Type 6.8" Wide SVGA
- Display Type Glare
- Display Panel Capacitive
- Display film Anti Fingerprint
- High Resolution WSVGA Screen 1024 x 600 pixel
- LCD backlight White LED
- Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
- Screen Adjustments Brightness / Tint / Colour / Contrast
- Dimmer function Manual/Sync
- Dimmer Level Auto/On/Off
- Visual Source Mode Mirroring / CarPlay / Android Auto.
- Mechanism type Fixed
- NTSC/PAL judge Yes (Auto)
- Display Off Mode Yes
Multimedia GUI Features
- OSDC Type Graphic
- Menu text 14 languages: English(UK)(Default), English(US), Spanish, French, German, Italian, Dutch Russian, Portuguese, Hebrew, Greek, Polish, Czech, Hungarian
- Demonstration Mode Yes
- Top Menu Customize Yes
- Opening Screen Type standard
- Background Customize 6 x pre-sets + 2 x user set
- R-CAM interrupt Yes
- R-CAM Parking Guide Lines Yes
Tuner Features
- FM Reception Yes
- AM (MW/LW) Reception Yes
- Tuning mode Auto1/Auto2/Manual
- Up/Down Seek/Scan Yes
- Tuner Pre-sets (FM/AM) 36 Pre-sets (24FM / 12AM)
- Automatic Memory Entry (AME) Yes
- Radio Data System Yes
- Radio Text Plus Yes
- Traffic Information Yes
- Local search Yes
- AF Regional Selectable: AF/AF Reg/OFF
- Enhanced Other Networks Function (EON) Yes
- Program Type Function (PTY) Yes
CE DAB tuner features
- DAB+ tuner built-in Yes
- Digital Radio Certification Mark Yes
- Intelligent seek Yes
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 15 ch * 1 bank presets,
- Service list by alphabet order Yes
- Alphabet Search Yes
- DAB-DAB/DAB-FM auto switch Yes
- Seamless DAB-FM blending Yes
- DLS (Dynamic Label) Yes
- PTY (Programme Type) search Yes
- Announcement Switching (ASW) Select Yes
- Slide Show Yes
- Soft linking Yes
- Antenna power supply on/off switch Yes
Bluetooth General Features
- Hands Free Profile (HPF) Ver. 1.8
- Audio Streaming (A2DP) Yes, (SBC/AAC)
- Simple Secure Pairing (SSP) Yes
- Phonebook Access Profile (PBAP) Yes
- PBAP call history Up to 20 entries of dialed, received and missed calls
- Audio/Video Remote Control Profile (AVRCP) Yes, V1.6
- iPhone & Android automatic pairing via USB Yes
- Private mode Yes
- Interrupt call request Yes
- Voice Control Yes
- Noise Canceller Yes
- Echo Canceller Yes
- High-quality noise canceling microphone built-in
- Bluetooth firmware upgradeable Yes, Included in system updates
CE_Playable Audio File
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
CE_Playable Video File
- MPEG1/2 files are playable USB
- MPEG4 files are playable USB
- WMV files are playable USB
- H.264 files are playable USB
- mkv files are playable USB
USB Features
- USB terminal Yes, rear side / 1m cable / fix
- USB Type 2.0 High speed
- Yes
- Drive Change Yes
- File System FAT16 / FAT32 / exFAT / NTFS
- Tag Information Display Yes
- Album Art Display Yes
- Repeat Play Folder/File/All
- Random play Folder
- Category search Yes
- Link Search Yes
- Last Position Memory / Resume Yes
- Time code display Yes
- USB ports maximum output current 2.1A
iPhone Features
- Connection via: USB / Bluetooth
- Plug & Play Yes
- Made for iPhone Yes
- Tag Information Display Yes
- Time Code Display Yes
- List Access Yes
- Album art support Yes
- Random Play Yes
- Repeat Play Yes
- Skip Yes
- iAP over Bluetooth Yes
- Works with Apple CarPlay via USB
Android Phone Control
- Connection via USB / Bluetooth
- Works with Android Auto Via USB
- Android Open Accessory Protocol Yes (For Android Auto)
Audio Features
- Max. Output Power 4 x 50W
- Primary Power Output 4 x 22W
- Pre-out 2 RCA : FRONT/REAR + SUB(mono)
- Pre-out Output Level 2.5V
- Volume Offset Yes
- Volume Type DSP
- Built-in Amplifier Off Yes
- Balance/Fader Control Yes
- Beep On/Off Yes
Multimedia DSP Features
- Position Preset 4 Presets
- Graphic Equalizer 13 bands
- G-EQ manual setting Yes
- G-EQ adjustable level Yes, +9db / -9dB
- Time Alignment 0 ~ 610cm
- HPF Cut Off Frequency 14 steps
- HPF Cut Slope Level 4 steps
- Low Pass Filter (LPF) Yes (Non-Fading)
- LPF Cut Off Frequency 14 steps
- LPF Cut Slope Level 4 steps
- X'over Yes
- Speaker Size Control Yes
- Channel Level Control Yes
- Loudness Yes
- Tweeter volume Yes
- Bass Boost Yes
- Source Volume Offset source independent
Connectivity
- DC-Cord 22pin to ISO
- Reverse sensor wire Yes
- Parking sensor (handbrake) wire Yes
- Power Control (P.CON) wire Yes
- Dimmer control wire Yes
- Preout 2 x RCA (Front/rear) + Sub (mono)
- AV-Input (Non Switchable) (Mini-jack) audio & video
- Video Out RCA x1 (Source: USB)
- Rear View Camera Input Dedicated RCA Video-in
- GPS Aerial Input GPS antenna included
- FM Antenna Input JASO connector
- DAB Aerial input SMB
- External microphone input 3,5mm mini-jack
- OEM Wired Remote Control ready Yes, Optional interface needed
- Learning Steering Remote Function Yes
Tuner Specifications
- FM range: 87.5Mhz - 108MHz (50Khz step) Yes
- FM Usable Sensitivity 1.8μV/75ohm (S/N 30dBf)
- FM Frequency Response 30Hz ~ 14kHz (± 3dB)
- FM Signal to noise ratio (Mono) 50dB
- FM Stereo Separation (1kHz) 35dB
- MW range: 531kHz - 1611kHz (9kHz step) Yes
- MW Usable Sensitivity 99μV
DAB Tuner specifications
- Band III - Frequency range 174.928 MHz - 239.2MHz
- Mode Band III
- Sensitivity - 98dBm
- Signal to noise ratio 82dB
- Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
- Output Voltage 14V (10.5V to 16V allowable)
- Maximum Current < 100 mA
Bluetooth specifications
- Technology Bluetooth V5.0
- Frequency 2.402 - 2.48 GHz
- Output power +9 dBm (max), Power Class 1
- Maximum range Line of sight approx. 10 meter
- Handsfree profile (HFP) Yes, V 1.8
- Advanced audio distribution profile (A2DP) Yes, V 1.3
- Audio Codec SBC/AAC
- Audio/Video remote control profile (AVRCP) Yes, V1.6
- Phonebook access profile (PBAP) Yes, V1.2
USB Specifications
- USB Version compatibility USB 2.0 High Speed
- File System FAT 16/32 / exFAT / NTFS
- Maximum Supply current 2100mA
- D/A Converter 24bit
- Video Decoder MPEG1/2/4, WMV, H.264, mkv
- Audio Decoder MP3, WMA, AAC, WAV, FLAC
Audio Specifications
- Maximum Power 50 W x 4
- Output Power (DIN45324,+B=14.4v) 22 W x 4
- Output frequency band 20 Hz ~ 20 kHz
- Pre-out Level 2500 mV / 10 kOhm,
- Pre-out Impedance ≤ 1400 Ohm
- Speaker Impedance 4 Ohm ~ 8 Ohm
Video Specifications
- Colour System of External Video Input NTSC/PAL
- External Video Input Level (RCA) 1 Vpp / 75 Ohm
- Video Output Level (RCA) 1 Vpp / 75 Ohm
Monitor Specifications
- Screen size (Diagonal) 6.8 Inches Wide
- Display system Transparent TN LCD Panel
- Drive system TFT Active Matrix System
- Number of Pixels 1843200pixels (1024(H) x 600(V) x RGB)
- Effective pixels 99.99%
- Pixel arrangement RGB Striped
- Back lighting LED (Light Emitting Diode)
General Specifications
- Operating voltage 14.4V (10.5 ~ 16V Allowable)
- Dimensions (WxHxD) 178 x 100 x 86mm
- Weight 1070 gr.
- Weight, inclu. sleeve & escutcheon 1.07 kg
Accessories
- Release keys 2 pieces
- Escutcheon Yes
- Installation Sleeve Yes
- DC cord 25 cm
- GPS Antenna Ground Plane Mount (Adhesive Metal Pad) Yes
- Multi-Language Instruction Manual Included
Audio and Video connectivity on the move with Apple Carplay and Android Auto
Kenwood DMX5023DABS Car stereo System - Single & Double DIN
Please Note. A DAB antenna is required to receive DAB Digital radio transmission. This can be purchased from our Recommended Add-Ons section
1. Refer to the installation section for fitting instructions.
If you are unsure about the suitability of this product please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you.
To complete the installation of an aftermarket headunit (eg. Kenwood, Parrot ASTEROID, Alpine, Pioneer, Sony, JVC etc.) you will usually require additional fitting accessories. You may require a facia adapter - single DIN or double DIN, aerial adaptor, ISO stereo adapter or a stalk/steering wheel adaptor if you want to integrate your steering wheel buttons. You can substitute the ISO stereo adapter lead for a steering wheel adapter, if one is available for your vehicle. If you purchase our Connects2 steering wheel adapter you don't need to purchase an ISO stereo adapter lead as well. Refer to our car stereo fitting accessory section to purchase your car specific accessories. We stock the full range of stereo fitting parts, just ask if you need help.
If you have any questions please contact us via the ask a question link at the top of this page and we will gladly assist you. Below is a quick explanation of different fitting accessories that you may require to install your aftermarket car stereo.
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your Car Stereo System to be installed at an address of your choice in the UK. To ensure we cover your area and provide you with a competitive no obligation quote, please contact us prior to placing your order.
Contact Us For A Competitive No Obligation Installation Quote
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
Stereo ISO adaptor harness allow connection to aftermarket stereo head units. Can also use steering wheel adapter instead.
Steering wheel adapter allows you to retain use of your steering wheel buttons. Avoids having to reach for car stereo controls in the dash.
Facia adaptors convert the aperture to DIN size used by aftermarket stereo head units
Aerial adaptor is often required to connect vehicles existing aerial to new aftermarket stereo
Car Stereo Full Specification | |
Android Auto | Yes |
Android Ready | Yes |
Apple CarPlay | Yes |
Bluetooth | |
Button Illumination | Blue LED |
DAB Radio Tick Mark Approved | Yes |
DAB+ | Yes |
Equaliser | 13 Band EQ - DSP - DTA Built-in |
FM Radio | Yes, Traffic information |
iPod Ready | Yes |
Max. Power Output | MOSFET 4 x 45W |
Plays | MPEG1/MPEG2/MPEG4 Video files playback, MP3/WMA/AAC Audio files playback |
Pre Out | 2 RCA: Front/Rear + Sub (Mono) |
Radio Data System | Yes |
Rear Camera Input | Yes |
Screen Size | 6.8" Wide VGA, Clear Resistive Touch Panel |
Size | Double DIN |
USB Input | Rear USB |
