Skoda Superb (2008-2015) Double DIN car stereo upgrade fitting kit (With CANbus Ignition)

Complete stereo upgrade kit to install a Double DIN aftermarket car stereo head unit in select Skoda Superb (2008-2015) car models with an original Swing or Bolero radio system.

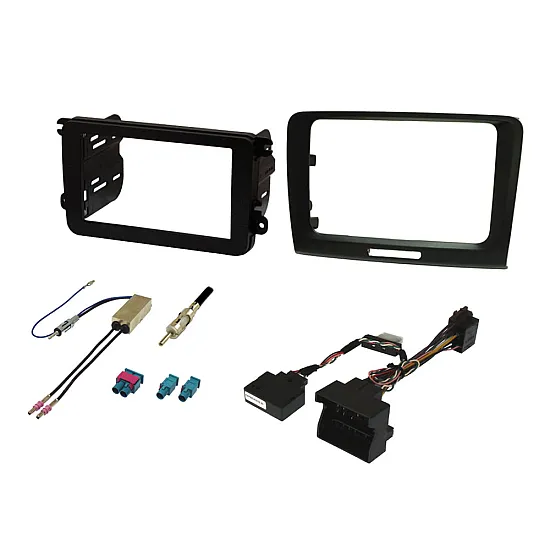

Fitting Kits Includes:

• Fascia adapter panel kit (50-689)
• Radio adapter cable (20-156-IGN)
• CANbus ignition interface (part of 20-156-IGN)
• Antenna adapter cable (21-140)

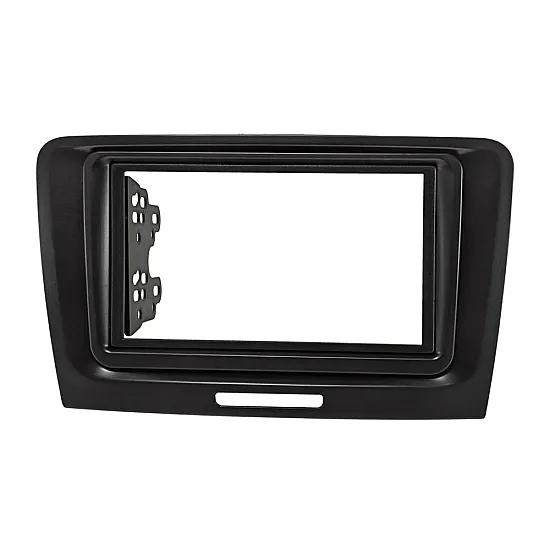

This fitting kit comes with two separate fascias, the first (left main image) mounts the new aftermarket radio into the dashboard and the second (right main image) finishes off the installation, filling out the gaps between the left hand fascia and the rest of the dashboard. An image of a radio fitted is below.
The fascia is supplied with side mounting brackets so no additional radio fitting cage is required.

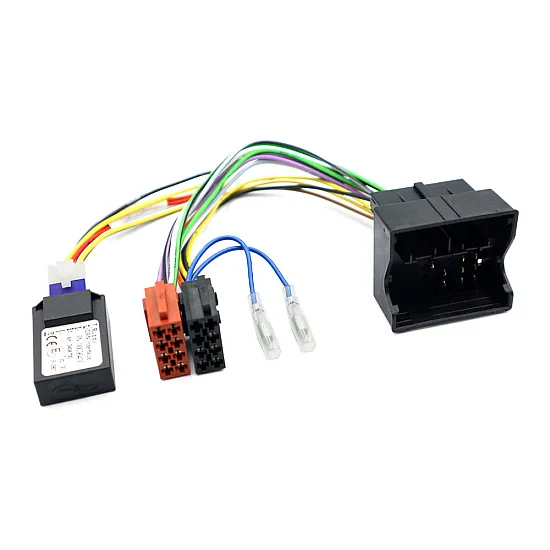

The kit has a plug and play radio adapter harness. It is designed to adapt from the original quadlock style connector in the dashboard to a standard aftermarket ISO connector to allow the fitting of a new radio.
This lead has a built in CANbus interface which provides a key present ignition power supply. A key present ignition supply will generate an ignition feed to turn the head unit on with the first position of the key, the interface will continue to give an ignition feed to the radio when the key is turned back to the off position, the ignition feed stops only when the key is then removed from the ignition barrel.

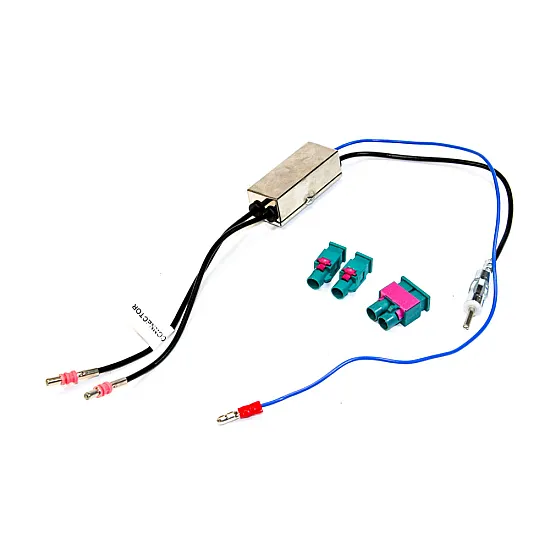

A double Fakra to DIN antenna adapter is included in the kit. This adapts from the original antenna connector in the car to a standard aftermarket DIN antenna connection.

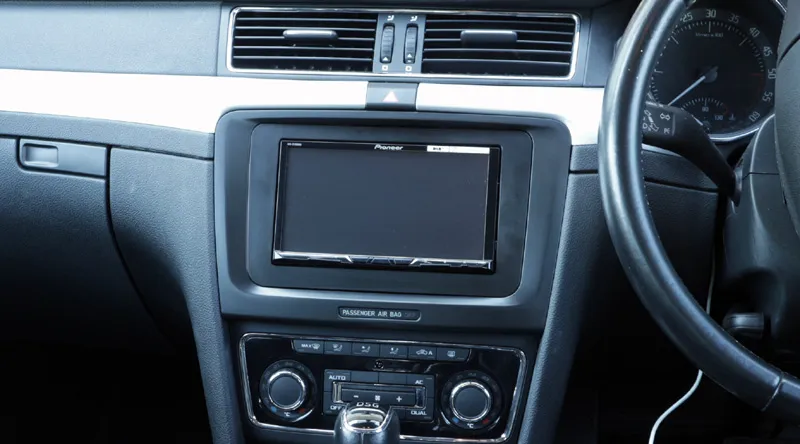

Below is an image of a radio fitted using this kit.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
